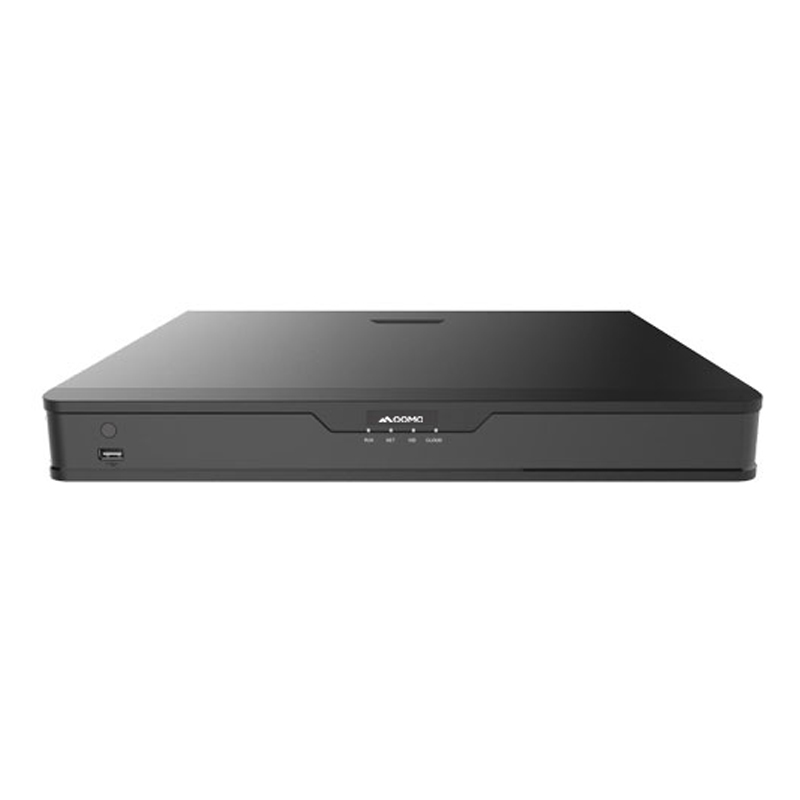

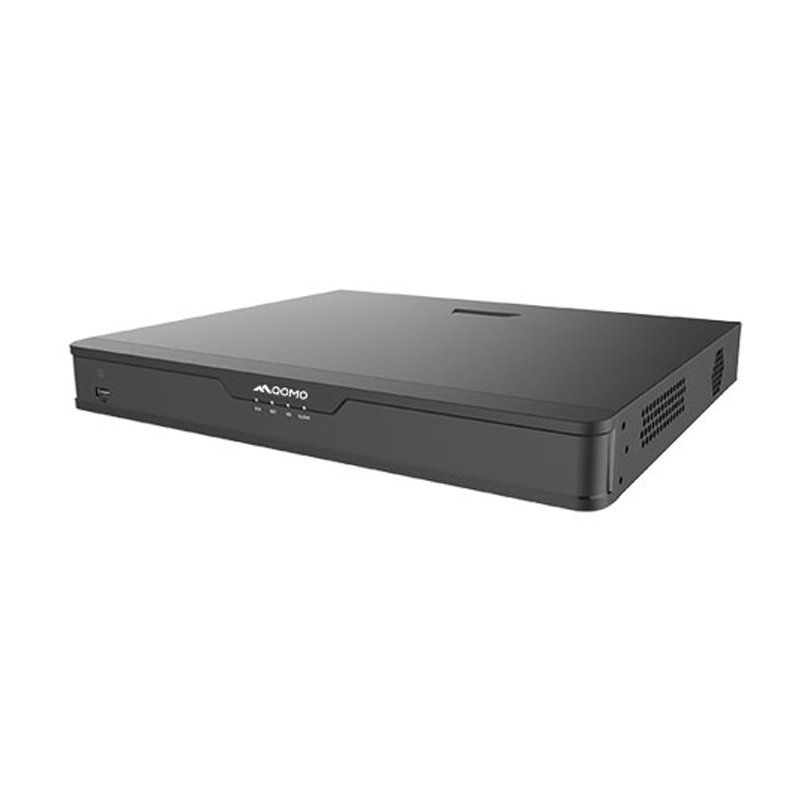

NVR502-B-P Series

Home / Products /

NVR502-B-P Series

Support Ultra 265/H.265/H.264 video formats

8/16/32‑channel input

Plug & Play with 8/16 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1‑ch HDMI, 1‑ch VGA. HDMI up to 4K (3840x2160) resolution

VGA and HDMI independent output

Up to 16 Megapixels resolution recording

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Inquire Now

Product Categories

How Can We Help You ?

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Hot Products

Product Details

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR502‑08B‑P8:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30 H.264: 2 x 16MP(48002688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 NVR502‑16B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(48002688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	320Mbps
OutgoingBandwidth	160Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;IPV6
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR502‑08B‑P8:8‑ch NVR502‑16B‑P16:16‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI:4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	NVR502‑08B‑P8:1/4/6/8/9 NVR502‑16B‑P16:1/4/6/8/9/16
CorridorModeScreen	NVR502‑08B‑P8:3/4/5/7/9 NVR502‑16B‑P16:3/4/5/7/9/10/12/16
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	4‑ch snapshot, up to D1 resolution
Recording	Description
RecordingResolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	NVR502‑08B‑P8:8‑ch NVR502‑16B‑P16:16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
SmartbyIPC	All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm	Description
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage	Description
GUILanguage	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk	Description
SATA	2 SATA Interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskGroup	Support
RedundantStorage	Support
DiskArrayType	RAID 1
ExternalInterface	Description
NetworkInterface	1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 1 x USB2.0;Rear panel: 1 x USB3.0
RS485	1
RS232	N/A
AlarmIn	8‑ch
AlarmOut	2‑ch
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
PoE	Description
Interface	NVR502‑08B‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR502‑16B‑P16:16 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower	NVR502‑08B‑P8:Max 30W for single port, Max 130W in total NVR502‑16B‑P16:Max 30W for single port, Max 240W in total
SupportedStandard	IEEE 802.3at, IEEE 802.3af
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 20W
Dimensions	Description
Weight(withoutHDD)	≤ 2.6Kg (5.73lb)
Dimensions	380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Certification	Description
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B

Hot Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Ask For The Product : NVR502-B-P Series

Related Products

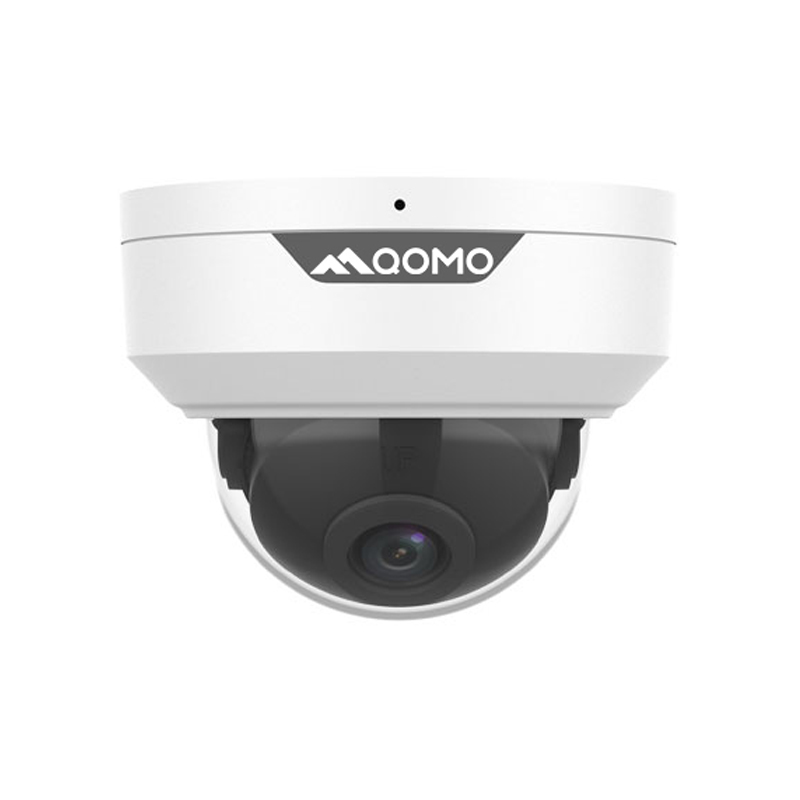

4K HD Vandal-resistant IR Fixed Dome Network Camera(IPC328SR3-ADF28(40)KM-G)

• High quality image with 8MP, 1/2.7"CMOS sensor• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps• Ultra 265, H.265, H.264, MJPEG• LightHunter technology ensures high image quality in low illumination environment• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card• IK10 vandal resistant• IP67 protection• Support PoE power supply• 3-Axis

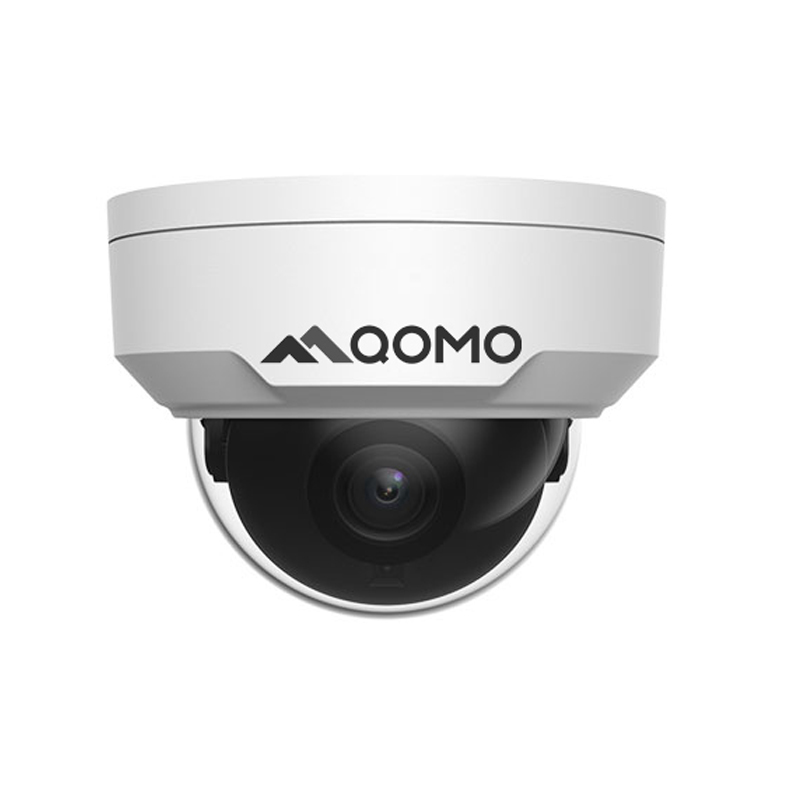

4MP HD Vandal-resistant IR Fixed Dome Network (IPC324SR3-DSF28(40)KM-G)

• High quality image with 4MP, 1/3"CMOS sensor1• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Lighthunter technology ensures high image quality in low illumination environment• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card IK10 vandal resistant• IP67 protection• Support PoE power supply• 3-Axis

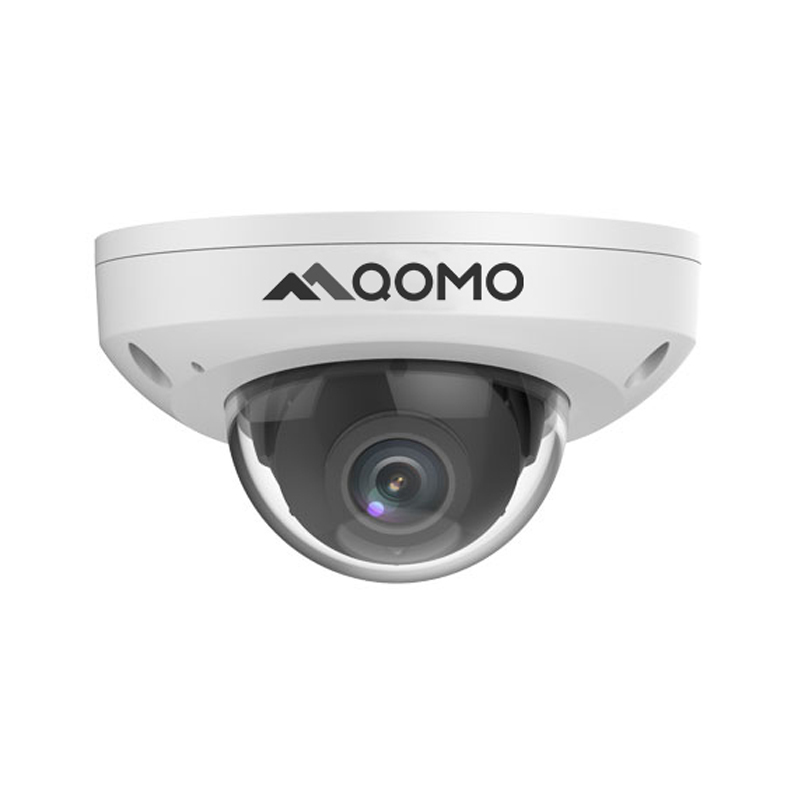

4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera（IPC314SB-ADF28K-I0）

• High quality imaging with 4MP, 1/3"CMOS sensor• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle• LightHunter technology ensures ultra-high image quality in low illumination environment• 120dB true WDR technology enables clear imaging in strong light scene• Support 9:16 Corridor Mode• Built-in Mic• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card• IK10 vandal resistant• IP67 protection• Support PoE power supply• 3-Axis

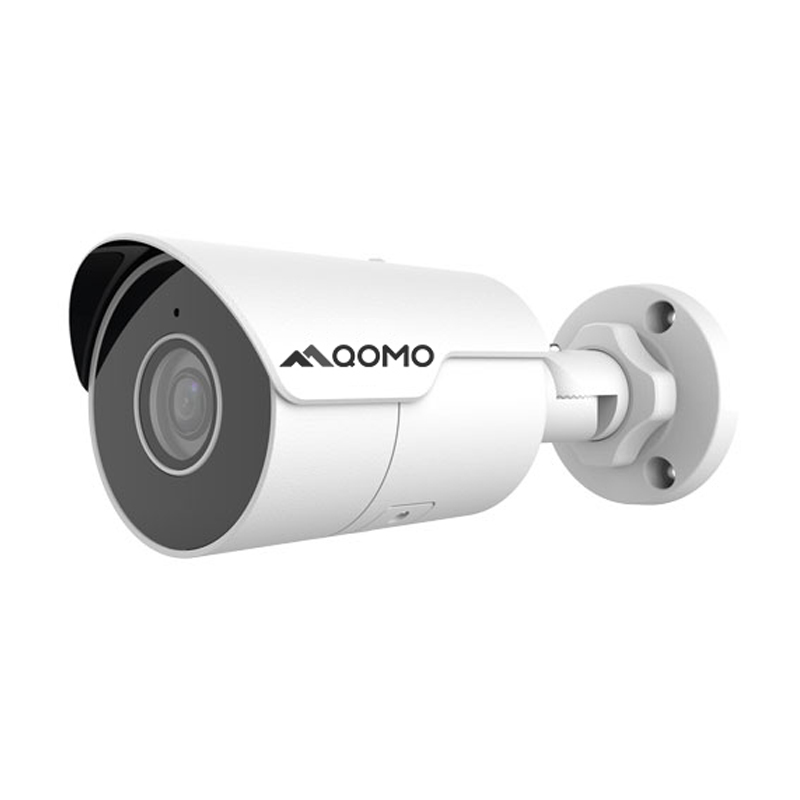

4MP HD Mini IR Fixed Bullet Network Camera （IPC2124SR5-ADF28(40)KM-G）

4MP HD Mini IR Fixed Bullet Network Camera (Only for USA) • High quality image with 4MP, 1/3"CMOS sensor• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Lighthunter technology ensures high image quality in low illumination environment• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic• Smart IR, up to 50m (164ft) IR distance• Supports 256 G Micro SD card• IP67 protection• Support PoE power supply• 3-Axis

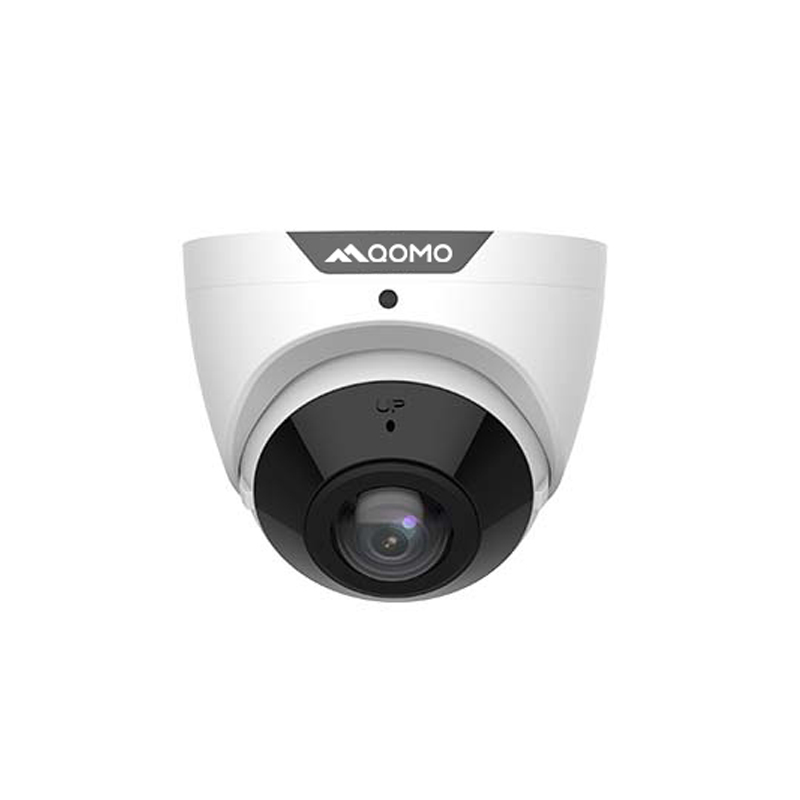

5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera(IPC3605SB-ADF16KM-I0)

• High quality image with 5MP, 1/2.7"CMOS· sensor• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps• Wide Angle technology realize the horizontal viewing angle of 180°• The dewarp level can be configured in the range of 1-9• Ultra 265, H.265, H.264, MJPEG• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle• 120dB true WDR technology enables clear image in strong light scene• Built-in Mic• Smart IR, up to 20m (66ft) IR distance• Supports 256 GB Micro SD card• IP67 protection• IK10 vandal resistant

4MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera(IPC3614SB-ADF28(40)KMC-I0)

• High quality image with 4MP, 1/2.7"CMOS sensor• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.• Intelligent People Flow Counting and Crowd Density Monitoring• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic and Speaker• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card• IP67 protection• Support PoE power supply

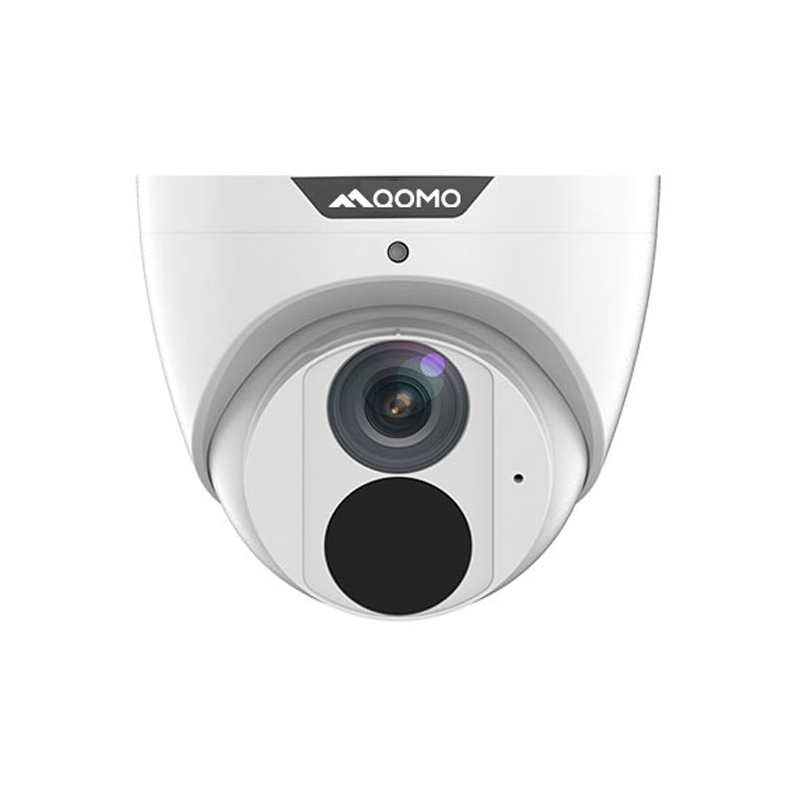

4MP HD IR Fixed Eyeball Network Camera(IPC3614SR3-ADF28(40)KM-G)

• High quality image with 4MP, 1/3"CMOS sensor• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• LightHunter technology ensures high image quality in low illumination environment• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card• IP67 protection• Support PoE power supply• 3-Axis

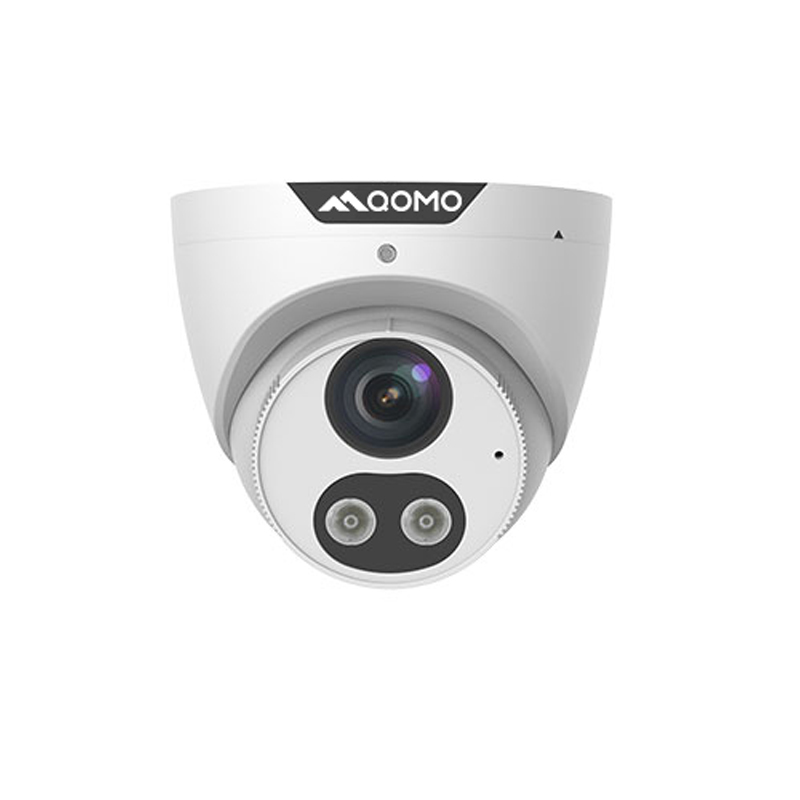

4MP HD Dual Light Fixed Eyeball Network Camera(IPC3614SR3-ADF28(40)KMC-DL)

4MP HD Dual Light Fixed Eyeball Network Camera (Only for USA) • High quality image with 4MP, 1/3"CMOS sensor• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic & Speaker• Smart IR, up to 30m (98ft) IR distance• White Light, up to 30m (98ft) white light distance• Supports 128 G Micro SD card• IP67 protection• Support PoE power supply• 3-Axis

8MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera（IPC3618SB-ADF28(40)KM-I0）

• High quality image with 8MP, 1/2.7"CMOS sensor• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps• Ultra 265, H.265, H.264, MJPEG• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle• Intelligent People Flow Counting and Crowd Density Monitoring• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built-in Mic• Smart IR, up to 30m (98ft) IR distance• Supports 256 G Micro SD card

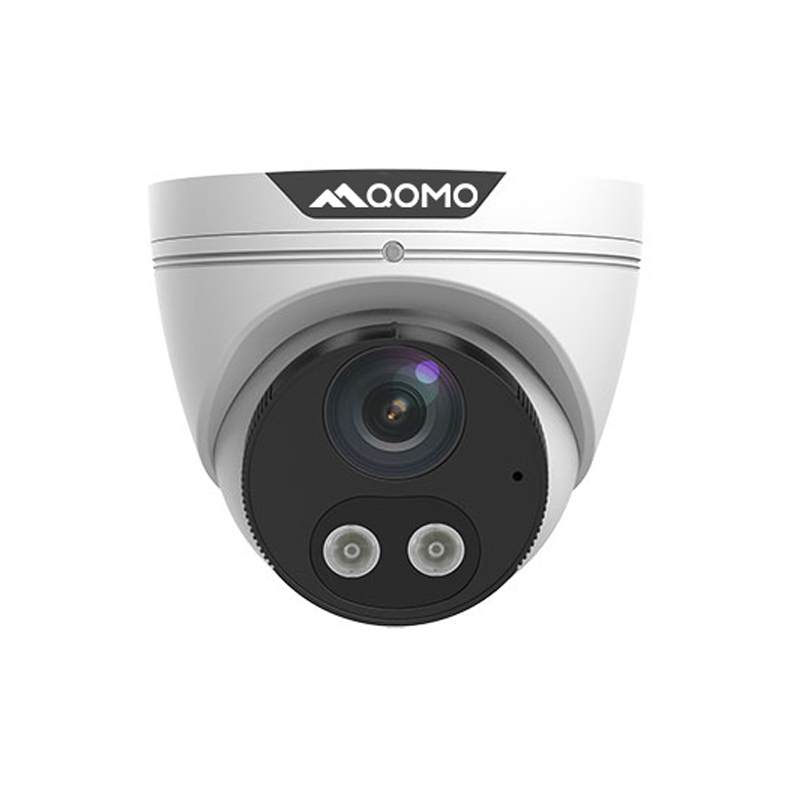

4MP HD Intelligent ColorHunter Fixed Eyeball Network Camera（IPC3634SE-ADF28(40)K-WL-I0）

• High quality image with 4MP, 1/1.8"CMOS sensor• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;• Ultra 265, H.265, H.264, MJPEG• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.• Intelligent People Flow Counting and Crowd Density Monitoring• Colorhunter technology ensures 24-hour full-color images• F1.0 Super aperture• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 corridor Mode• Alarm:1 in/1 out, Audio: 1 in/1 out• Supports 256 G micro SD card• IK10 vandal resistant and IP67 protection

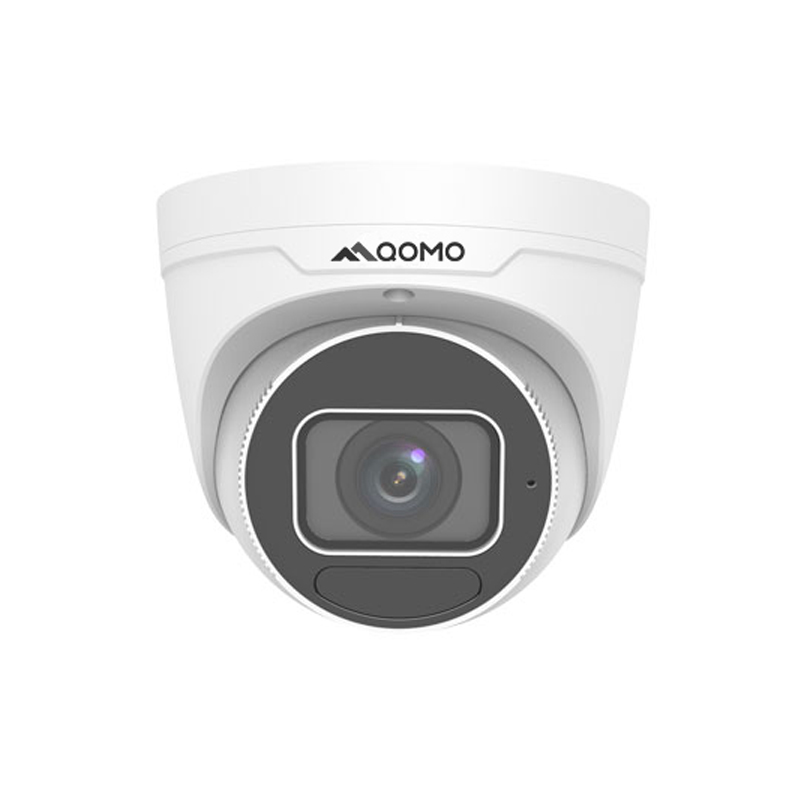

8MP HD Intelligent LightHunter IR VF Eyeball Network Camera（IPC3638SB-ADZK-I0）
